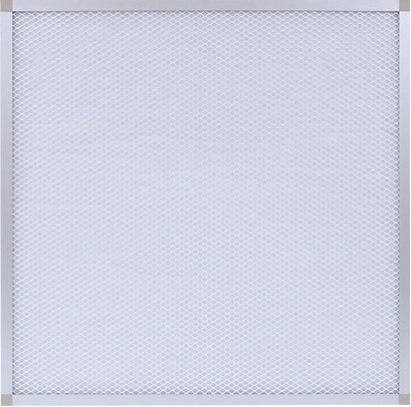

ZPF初效平板式过滤器
过滤效率等级可选G3-G4，符合标准EN779:2012
采用特制的高通量低阻力的聚酯合成纤维滤料，容尘量大
外框材质可选：镀锌、铝合金、不锈钢
护网材质可选：镀锌、铝合金、不锈钢
Filter efficiency ranges from G3 to G4, meet
EN779:2012.
Use special low-resistance and high-throughput
polyester synthetic fiber as filter material, with high
dust-holding capacity.
Frame material: aluminum alloy, galvanized steel,
stainless steel.
Net material: aluminum alloy, galvanized steel, stainless
steel.
应用场合 Application
应用于商场、医院等中央空调送风系统，普通工业厂房集中通风系统，洁净室新风空调系统预过滤
Shopping malls, hospitals and other public service places of central air condition system.Industrial plants of central ventilation system.Fresh air of air condition system for clean room.
结构示意图 Structure diagram

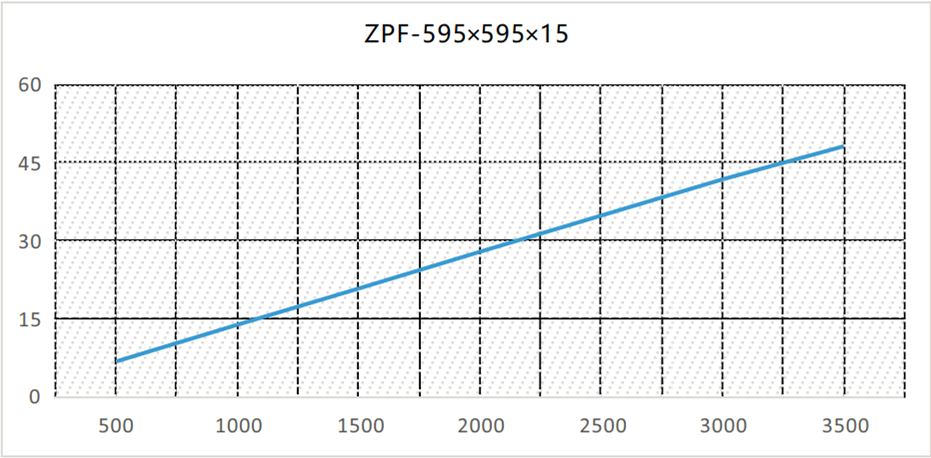

初始压降与风量性能曲线图
Initial pressure drop and air volume performance curve
常用规格 Common specifications
